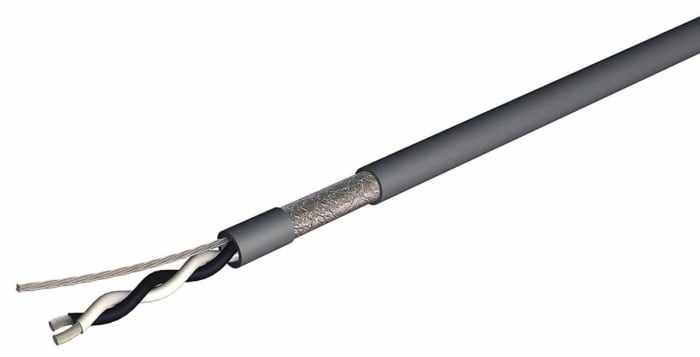

Alpha Wire Alpha Essentials LSZH Communication & Control Series Data Cable, 2 Cores, 0.35 mm², Unscreened, 22 AWG, 305m

RS Stock No.: 187-2074Brand: Alpha WireManufacturers Part No.: 1172L SL001
brand-logo
View all in Twisted Pair & Multicore Data Cable

Technical Document

Specifications

Brand

Alpha Wire

Cross Sectional Area

0.35 mm²

Number of Cores

2

American Wire Gauge

22 AWG

Screened/Unscreened

Unscreened

Length

305m

Sheath Colour

Grey

Outer Diameter

4.06mm

Outer Sheath Material

LSZH

Cable Shape

Multicore

Shielded/Unshielded

Unshielded

Series

1172L

Core Strands

7/30 AWG

Voltage Rating

300 V

Fire Behaviour

Low Smoke Zero Halogen (LSZH)

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+75°C

You may be interested in
Stock information temporarily unavailable.

BD 192.150

BD 0.630 Each (Exc. Vat)

BD 211.365

BD 0.693 Each (inc. VAT)

Alpha Wire Alpha Essentials LSZH Communication & Control Series Data Cable, 2 Cores, 0.35 mm², Unscreened, 22 AWG, 305m

305

Available in multiples of 305
305BD 192.150
610BD 384.300
915BD 576.450
1220BD 768.600
1525BD 960.750
1830BD 1,152.900
2135BD 1,345.050
2440BD 1,537.200
2745BD 1,729.350
3050BD 1,921.500
3355BD 2,113.650
3660BD 2,305.800
3965BD 2,497.950
4270BD 2,690.100
4575BD 2,882.250

BD 192.150

BD 0.630 Each (Exc. Vat)

BD 211.365

BD 0.693 Each (inc. VAT)

Alpha Wire Alpha Essentials LSZH Communication & Control Series Data Cable, 2 Cores, 0.35 mm², Unscreened, 22 AWG, 305m
Stock information temporarily unavailable.

305

Available in multiples of 305
305BD 192.150
610BD 384.300
915BD 576.450
1220BD 768.600
1525BD 960.750
1830BD 1,152.900
2135BD 1,345.050
2440BD 1,537.200
2745BD 1,729.350
3050BD 1,921.500
3355BD 2,113.650
3660BD 2,305.800
3965BD 2,497.950
4270BD 2,690.100
4575BD 2,882.250

Stock information temporarily unavailable.

Please check again later.

You may be interested in

Technical Document

Specifications

Brand

Alpha Wire

Cross Sectional Area

0.35 mm²

Number of Cores

2

American Wire Gauge

22 AWG

Screened/Unscreened

Unscreened

Length

305m

Sheath Colour

Grey

Outer Diameter

4.06mm

Outer Sheath Material

LSZH

Cable Shape

Multicore

Shielded/Unshielded

Unshielded

Series

1172L

Core Strands

7/30 AWG

Voltage Rating

300 V

Fire Behaviour

Low Smoke Zero Halogen (LSZH)

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+75°C
