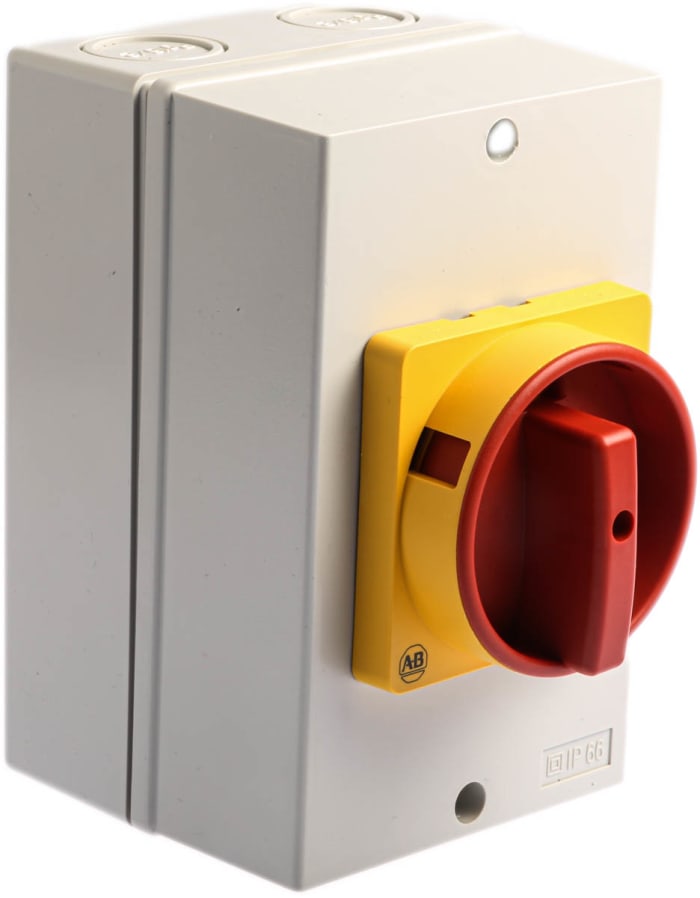

Allen Bradley 3P Pole DIN Rail Isolator Switch - 32A Maximum Current, 15kW Power Rating, IP66
Technical Document
Specifications
Brand
Allen BradleyNumber of Poles
3P
Maximum Current
32A
Mounting Type
DIN Rail
IP Rating
IP66
Power Rating
15kW
Voltage Rating
690V ac
Electrical Phase
3
Accepts Padlocks
Yes
Handle Colour
Black/Grey, Red/Yellow
Switch Rating
15kA
Length
150mm
Width
95mm
Depth
86mm
Terminal Type
Wire Lead
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+60°C
Product details
Allen Bradley Enclosed Switch Disconnectors
These disconnectors feature durable ABS thermoplastic enclosures. The cover is interlocked to prevent removal when live, reducing risk of electric shock. The handle can be padlocked in up to three positions in the OFF position for greater protection and security. They also have an earth connection in the base of the enclosure.
Standards: IEC 947, VDE 0660
Approvals: UL, CSA
Allen Bradley MCS Range
The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.
