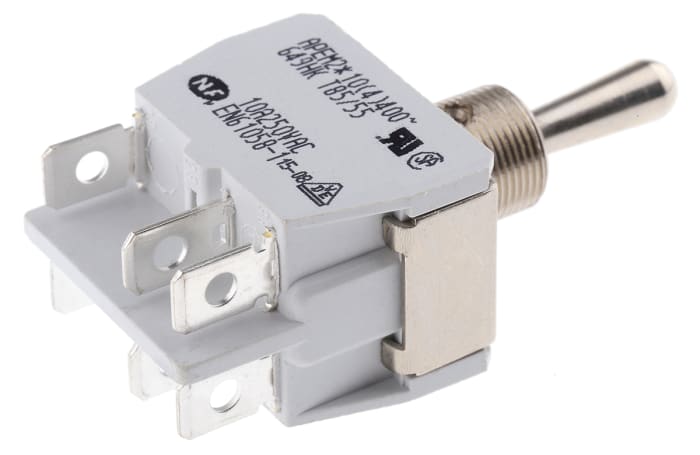

APEM Toggle Switch, Panel Mount, On-Off-On, DPDT, Tab Terminal
Technical Document
Specifications
Brand
ApemContact Configuration
DPDT
Switch Operation
On-Off-On
Contact Current Rating
10 A @ 24 V dc
Mounting Type
Panel Mount
Terminal Type
Tab
Actuator Length
13.5mm
Actuator Material
Polyamide
Contact Material
Silver Nickel Alloy
Contact Resistance
0.01Ω
Minimum Operating Temperature
-20°C
Operating Temperature Range
-20 → +55°C
Maximum Operating Temperature
+55°C
Country of Origin
France
Product details
Toggle Switches, Std, 15A Flat Insulated Lever
Single and double pole switches with a choice of flat insulated or traditional metal levers.
12mm mounting bush
250 ( 1/4 in.) terminals
Brass actuator and Melamine/Polyester case
Silver/Nickel Alloy contacts
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
BD 7.178
BD 7.178 Each (Exc. Vat)
BD 7.896
BD 7.896 Each (inc. VAT)
1
BD 7.178
BD 7.178 Each (Exc. Vat)
BD 7.896
BD 7.896 Each (inc. VAT)
1
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price |
|---|---|
| 1 - 24 | BD 7.178 |
| 25 - 49 | BD 5.902 |
| 50 - 99 | BD 5.489 |
| 100 - 249 | BD 5.203 |
| 250+ | BD 4.834 |
