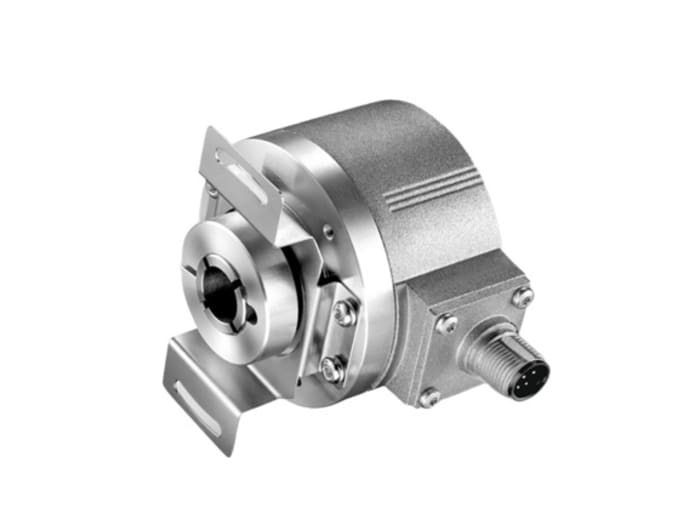

Baumer GI342 Series Optical Incremental Encoder, 100 ppr, HTL/Push Pull Signal, Hollow Type, 12mm Shaft
Technical Document
Specifications
Brand
BaumerEncoder Technology
Optical
Series
GI342
Pulses Per Revolution
100
Maximum Revolutions
6000rpm
Output Signal Type
HTL/Push Pull
Shaft Type
Hollow
Supply Voltage
4.75 → 30 V dc
Shaft Diameter
12mm
IP Rating
IP54
Overall Width
58mm
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+85°C
Mounting Type
Through Hollow Shaft Flange
Connection Type
Cable output 1 m
Switching Frequency
≤150 kHz
Country of Origin
Germany
Product details
GI342 series hollow shaft Ø 58 encoders
Carbon-fibre reinforced polyamide housing.
Extended voltage supply range from 4.75 → 30 Vdc
Universal output stage, compatible with Totem pole, NPN or PNP and RS422 or TTL line transmitter.
Resolution up to 5000 pulses / turn.
Output signals A; A/; B; B/; Zero pulse; Zero pulse/.
Hollow shaft encoders for direct mounting onto the end of a motor shaft, bored hole Ø 12 mm H7.
Clamping ring on flange, spring anti-rotation coupling supplied with the encoder.
E-connection with 1 metre shielded cable.
Application: robotics, metal or wood working, paper, textiles, packing machinery.
