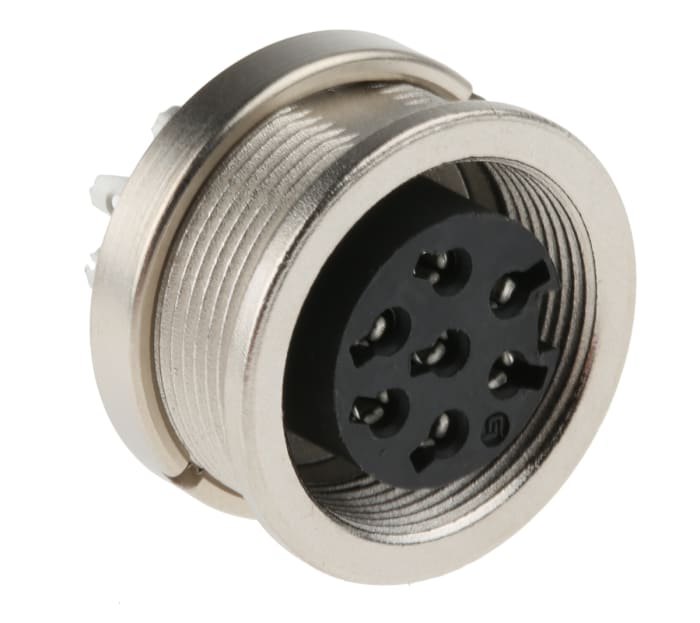

binder Circular Connector, 7 Contacts, Panel Mount, M16 Connector, Socket, Female, IP67, 723 Series
Technical Document
Specifications
Brand
BinderNumber Of Contacts
7
Mounting Type
Panel Mount
Connector Size
M16
Plug/Socket
Socket
Contact Gender
Female
Termination Method
Solder
IP Rating
IP67
Current Rating
5.0A
Body Orientation
Straight
Series
723
Voltage Rating
125.0 V
Contact Plating
Silver
Minimum Operating Temperature
-30°C
Contact Material
Brass
Maximum Operating Temperature
+95°C
Country of Origin
Germany
Product details
Panel Sockets
Binder 723 Series
Binder 723 series plugs and sockets feature brass nut screw-coupling mechanism and plastic insert with solder termination. The screw coupling mechanism incorporates a gasket, sealing the cable mount connectors to IP67 when mated and locked together in-line, or with the relevant chassis mounted connectors.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
BD 6.166
BD 6.166 Each (Exc. Vat)
BD 6.783
BD 6.783 Each (inc. VAT)
1
BD 6.166
BD 6.166 Each (Exc. Vat)
BD 6.783
BD 6.783 Each (inc. VAT)
Stock information temporarily unavailable.
1
Stock information temporarily unavailable.
| Quantity | Unit price |
|---|---|
| 1 - 49 | BD 6.166 |
| 50 - 99 | BD 5.720 |
| 100 - 249 | BD 5.280 |
| 250 - 499 | BD 4.895 |
| 500+ | BD 4.504 |
