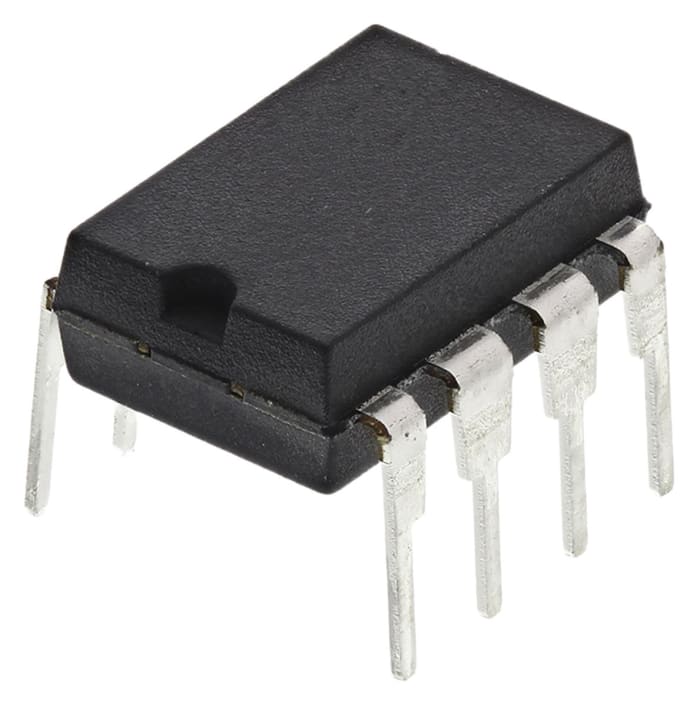

Broadcom, HCPL-2232-500E Schmitt Trigger Output Dual Optocoupler, Surface Mount, 8-Pin DIP

Name: Broadcom, HCPL-2232-500E Schmitt Trigger Output Dual Optocoupler, Surface Mount, 8-Pin DIP
Brand: Broadcom
SKU: 1743667
Availability: LimitedAvailability

RS Stock No.: 174-3667Brand: BroadcomManufacturers Part No.: HCPL-2232-500E

View all in Optocouplers

Technical Document

Specifications

Brand

Broadcom

Mounting Type

Surface Mount

Output Device

Schmitt Trigger

Maximum Forward Voltage

1.95V

Number of Channels

Number of Pins

Package Type

DIP

Typical Rise Time

30ns

Maximum Input Current

40 mA

Isolation Voltage

5000 Vrms

Logic Output

Yes

Typical Fall Time

7ns

Series

HCPL-2232
