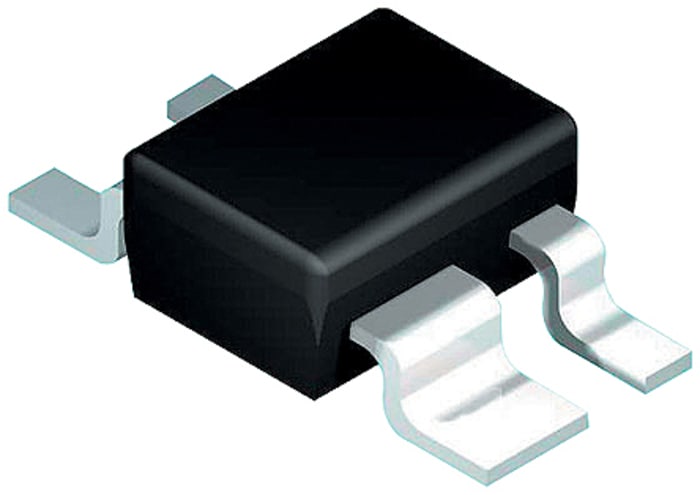

Diodes Inc D1213A-02SR-7, Dual-Element Uni-Directional TVS Diode Array, 4-Pin SOT-143
Technical Document
Specifications
Brand
DiodesZetexDirection Type
Uni-Directional
Diode Configuration
Complex Array
Maximum Clamping Voltage
17V
Minimum Breakdown Voltage
6V
Mounting Type
Surface Mount
Package Type
SOT-143
Maximum Reverse Stand-off Voltage
3.3V
Pin Count
4
Maximum Peak Pulse Current
5A
ESD protection
Yes
Number of Elements per Chip
2
Minimum Operating Temperature
-65 °C
Maximum Operating Temperature
+150 °C
Dimensions
3 x 1.4 x 1mm
Maximum Reverse Leakage Current
1µA
Length
3mm
Height
1mm
Width
1.4mm
Test Current
1mA
Country of Origin
China
Product details
Dual Channel Data Line Protection TVS Diode Array, Diodes Inc
Transient Voltage Suppressors, Diodes Inc
