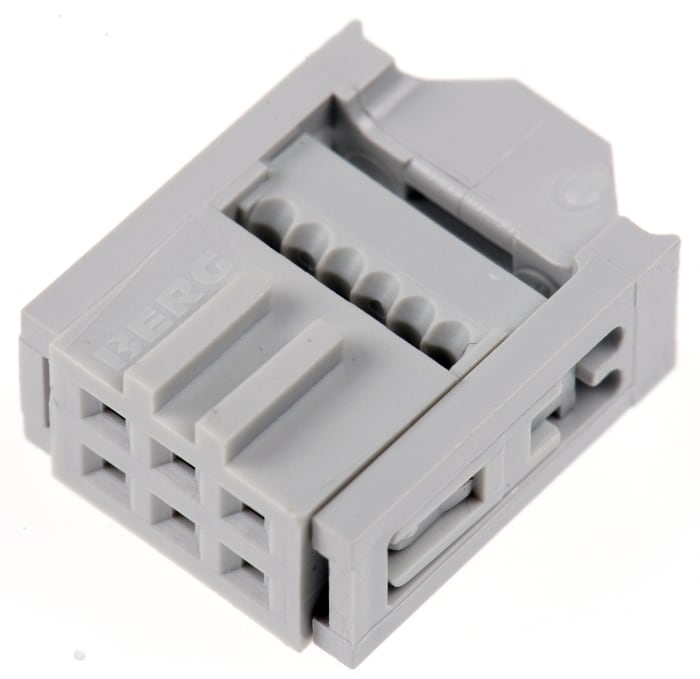

HARTING 6-Way IDC Connector Socket for Cable Mount, 2-Row
Technical Document
Specifications
Brand
HartingNumber Of Contacts
6
Number Of Rows
2
Gender
Female
Pitch
2.54mm
Mounting Type
Cable Mount
Body Orientation
Right Angle
Termination Method
IDC
Current Rating
1A
Contact Plating
Gold
Series
SEK-18
Minimum Operating Temperature
-55.0°C
Maximum Operating Temperature
125.0°C
Voltage Rating
320.0 V ac
Housing Material
PBT
Country of Origin
Switzerland
Product details
Bump Polarised Socket
A range of Bump Polarized Sockets having Open End Covers with or without Strain Relief:
• Harting part numbers ending in xxxxxxxx803 have no Strain Relief Clamp
• Harting part numbers ending in xxxxxxxx813 have Strain Relief Clamp
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
BD 0.852
BD 0.852 Each (Exc. Vat)
BD 0.937
BD 0.937 Each (inc. VAT)
Standard
1
BD 0.852
BD 0.852 Each (Exc. Vat)
BD 0.937
BD 0.937 Each (inc. VAT)
Standard
1
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price |
|---|---|
| 1 - 49 | BD 0.852 |
| 50 - 99 | BD 0.776 |
| 100 - 249 | BD 0.704 |
| 250 - 499 | BD 0.627 |
| 500+ | BD 0.610 |
