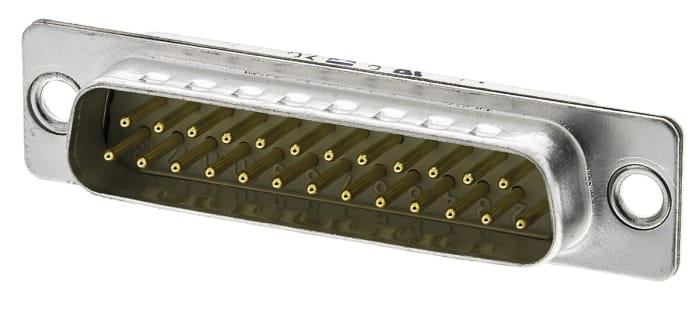

Harting 25 Way Through Hole D-sub Connector Plug, 2.76mm Pitch, with 4-40 UNC Threaded Inserts, Boardlocks
Technical Document
Specifications
Brand
HartingNumber Of Contacts
25
Gender
Male
Body Orientation
Straight
Mounting Type
Through Hole
Pitch
2.76mm
Mounting Hardware
4-40 UNC Threaded Inserts, Boardlocks
Termination Method
Solder
Current Rating
7.5A
Housing Material
Steel
Length
53.2mm
Width
12.4mm
Depth
12.5mm
Dimensions
53.2 x 12.4 x 12.5mm
Contact Plating
Gold
Contact Material
Copper Alloy
Minimum Operating Temperature
-55.0°C
Maximum Operating Temperature
+125°C
Country of Origin
Switzerland
Product details
D-Sub Stamped solder pins, straight with grounding board locks
Standard subminiature D connectors
Stamped contacts
Performance level 2
Metal shell
4-40 UNC
Standards
IEC 60 807
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
Please check again later.
BD 3.595
Each (Exc. Vat)
BD 3.955
Each (inc. VAT)
Standard
1
BD 3.595
Each (Exc. Vat)
BD 3.955
Each (inc. VAT)
Standard
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 9 | BD 3.595 |
| 10 - 49 | BD 3.245 |
| 50+ | BD 2.940 |
