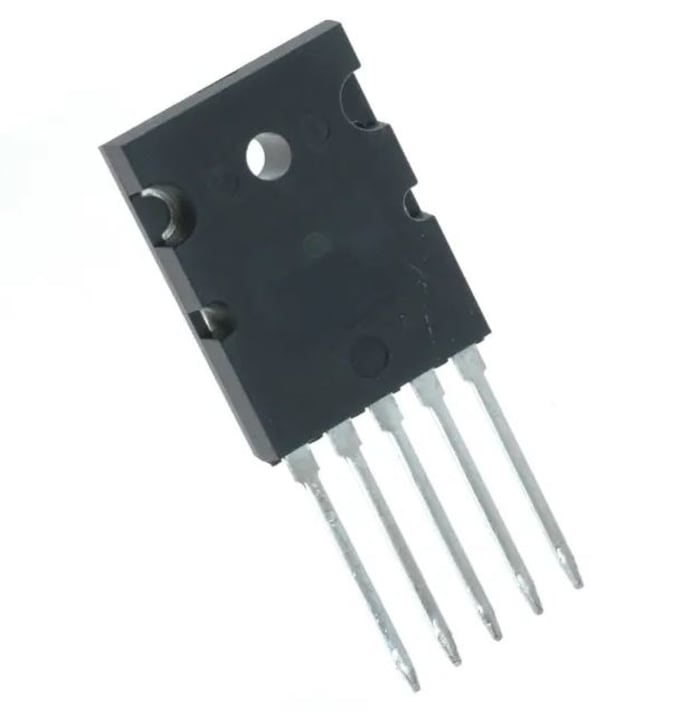

onsemi NJL1302DG PNP Transistor, -25 A, -260 V, 5-Pin TO-264
Technical Document
Specifications
Brand
onsemiTransistor Type
PNP
Maximum DC Collector Current
-25 A
Maximum Collector Emitter Voltage
-260 V
Package Type
TO-264
Mounting Type
Through Hole
Maximum Power Dissipation
200 W
Transistor Configuration
Single
Maximum Collector Base Voltage
260 V
Maximum Emitter Base Voltage
5 V
Maximum Operating Frequency
1 MHz
Pin Count
5
Number of Elements per Chip
1
Maximum Operating Temperature
+150 °C
Dimensions
20.01 x 5.18 x 26.11mm
Country of Origin
Korea, Republic Of
