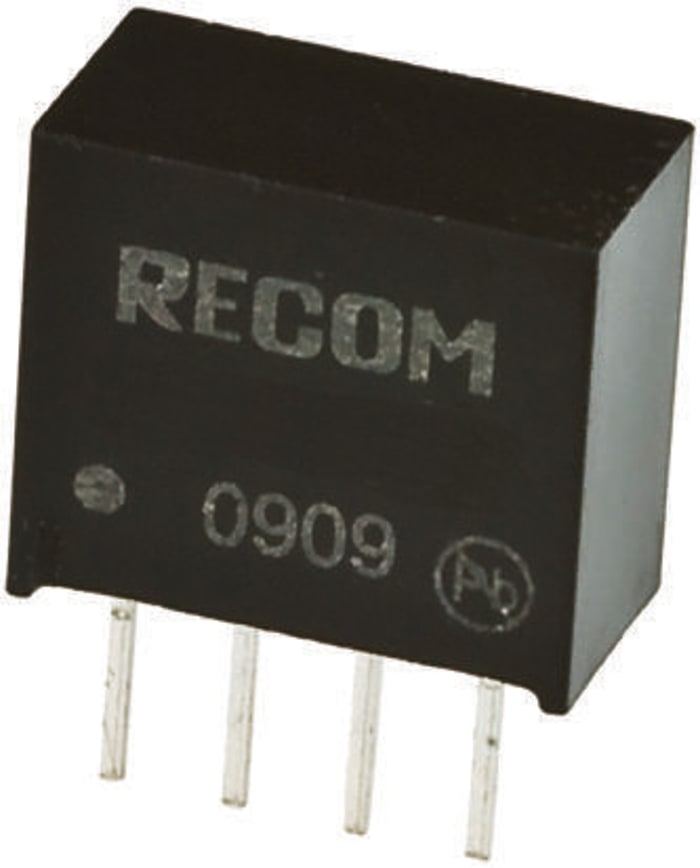

Recom RI DC-DC Converter, 5V dc/ 400mA Output, 4.5 → 5.5 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C Min
Technical Document
Specifications
Brand
RecomOutput Voltage
5V dc
Input Voltage Range
4.5 → 5.5 V dc
Power Rating
2W
Input Voltage Nominal
5 V dc
Output Current
400mA
Mounting Type
Through Hole
Isolated
Yes
Number of Outputs
1
Package
SIP
Isolation Voltage
1kV dc
Width
7.55mm
Length
11.5mm
Depth
10.2mm
Series
RI
Load Regulation
0.15
Maximum Temperature
+85°C
Standards Met
EN60950
Minimum Temperature
-40°C
Efficiency
78 → 83%
Country of Origin
Taiwan, Province Of China
Product details
Recom 2W SIP Single Output Unregulated Isolated DC-DC Converter - RI Series
Industrial standard pin-out
No heatsink required
SIP4 package
High efficiency (80% typ)
Capacitor input filter
Isolation voltage 1kVdc (min)
Voltage; input ±10%, output ±5%
UL94V-0 package material
