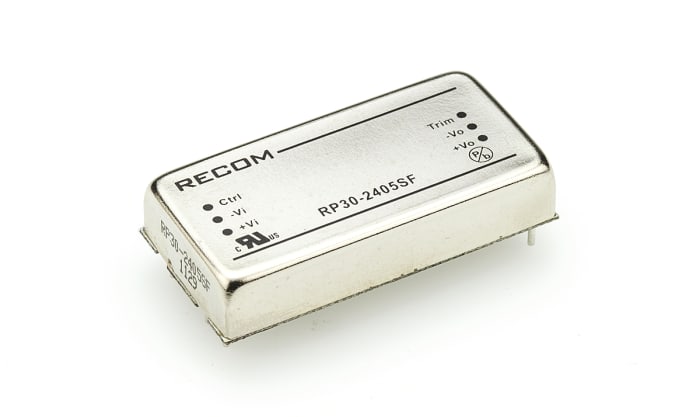

Recom RP30-F DC-DC Converter, 5V dc/ 6A Output, 9 → 36 V dc Input, 30W, Through Hole, +50°C Max Temp -40°C Min
Technical Document
Specifications
Brand
RecomOutput Voltage
5V dc
Input Voltage Range
9 → 36 V dc
Power Rating
30W
Input Voltage Nominal
24 V dc
Output Current
6A
Mounting Type
Through Hole
Isolated
Yes
Number of Outputs
1
Package
2 x 1 in
Isolation Voltage
1.6kV dc
Width
25.4mm
Depth
10.2mm
Length
50.8mm
Series
RP30-F
Load Regulation
±0.5%
Minimum Temperature
-40°C
Efficiency
88%
Maximum Temperature
+50°C
Country of Origin
Taiwan, Province Of China
Product details
Recom 30W Single/Dual Output Regulated Isolated DC-DC Converter - RP30-F Series
2:1 wide input voltage range
1.6kVdc isolation
Fixed operating frequency
Six sided continuous shield
Standard 2x1" package
High efficiency
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
BD 387.585
BD 43.065 Each (In a Pack of 9) (Exc. Vat)
BD 426.343
BD 47.371 Each (In a Pack of 9) (inc. VAT)
9
BD 387.585
BD 43.065 Each (In a Pack of 9) (Exc. Vat)
BD 426.343
BD 47.371 Each (In a Pack of 9) (inc. VAT)
9
Stock information temporarily unavailable.
Please check again later.
| quantity | Unit price | Per Pack |
|---|---|---|
| 9 - 36 | BD 43.065 | BD 387.585 |
| 45 - 81 | BD 41.772 | BD 375.952 |
| 90 - 216 | BD 40.480 | BD 364.320 |
| 225 - 441 | BD 39.644 | BD 356.796 |
| 450+ | BD 38.912 | BD 350.212 |
