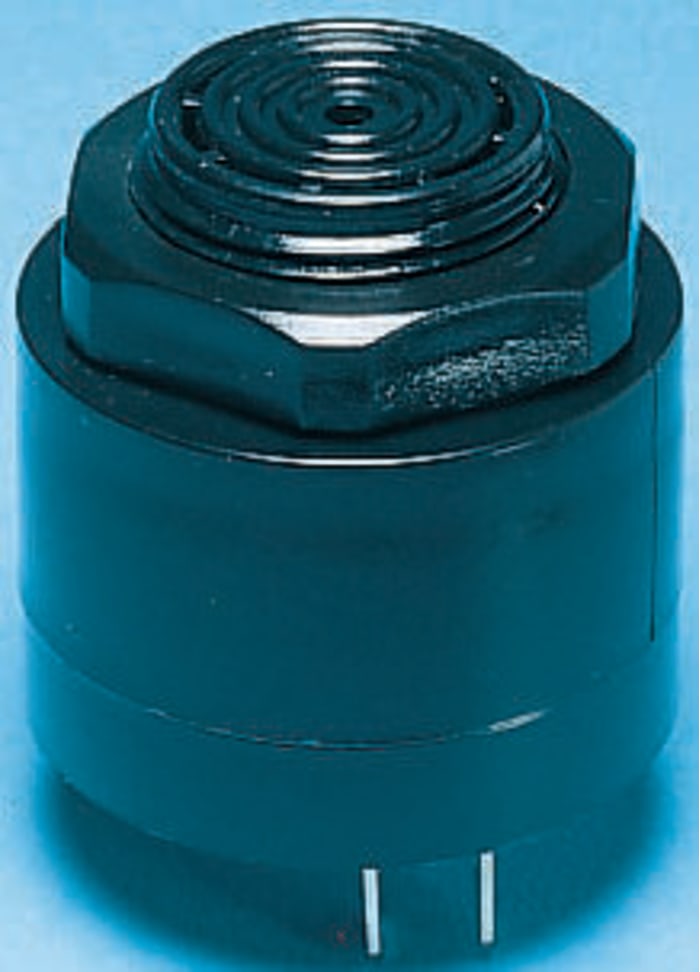

RS PRO 85dB Panel Mount Slow Pulse Internal Buzzer, 42.5 x 42mm, 60V ac/dc Min, 250V ac/dc Max

RS Stock No.: 622-1562Brand: RS PRO
brand-logo
View all in Piezo Buzzers

Technical Document

Specifications

Brand

RS Pro

Mounting Type

Panel Mount

Minimum Supply Voltage

60V ac/dc

Maximum Supply Voltage

250V ac/dc

Sound Level

85dB

Drive Type

Internal

Tone Type

Slow Pulse

Diameter

42.5mm

Height

42mm

Dimensions

42.5 x 42mm

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

+85°C

Maximum Frequency

3.3kHz

Minimum Frequency

2300Hz

Supply Current

15mA

Country of Origin

Taiwan, Province Of China

Product details

Panel hole mount pulsed tone buzzer faston terminals

Panel hole mounting pulsed tone buzzer
6.3 x 0.8mm faston connector size
High output levels
Internal circuitry for dc operation
