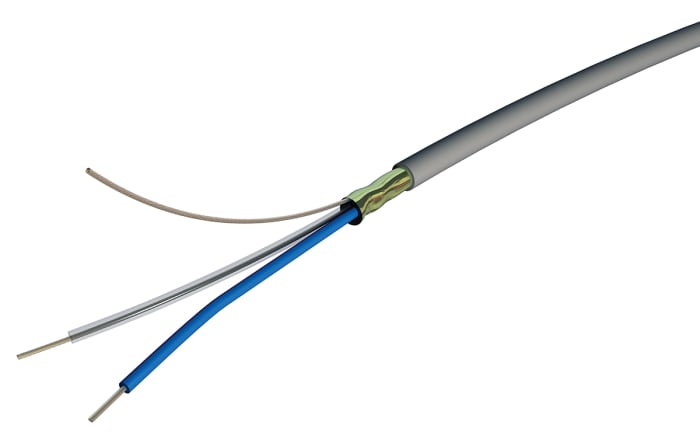

S2Ceb-Groupe CaeJA Series Audio & Control Cable, 0.22 mm² CSA Screened, 4mm od, 100m, Black
Technical Document
Specifications
Brand
S2Ceb-Groupe CaeAudio Cable Type
Audio & Control Cable
Cross Sectional Area
0.22 mm²
Screened/Unscreened
Screened
Insulation material
PE
Outer Diameter
4mm
Length
100m
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+85°C
Fire Behaviour
Flame Retardant
Sheath Colour
Black
American Wire Gauge
24 AWG
Sheath Material
PVC
Standards Met
Euroclass Eca
Cable Shape
Twisted Pair
Series
JA
Conductor Strand Type
Stranded
Core Strands
7/0.2 mm
Conductor Material
Tinned Copper
Voltage Rating
250 V
Size of Strands
0.2 mm
Screen Type
Aluminium Tape
Number of Strands
7
Shielded/Unshielded
Shielded
Country of Origin
Turkey
Product details
Screened audio patch pair for cable
The extraordinary flexibility of this cable guarantees a longer life than a conventional jumper wire.
This cable has an external sleeve which passes the C2 test in the NFC 32070 standard.
Flame-retardant and self-extinguishing.
Standard: C2 - NFC 32070
Stock information temporarily unavailable.
Please check again later.
BD 73.705
1 Reel of 100 Metres (Exc. Vat)
BD 81.075
1 Reel of 100 Metres (inc. VAT)
1
BD 73.705
1 Reel of 100 Metres (Exc. Vat)
BD 81.075
1 Reel of 100 Metres (inc. VAT)
1
