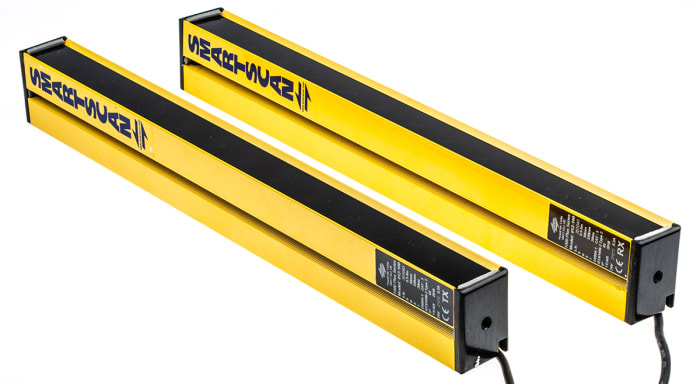

Smartscan 1K3 Series Light Curtain, Sender & Receiver, 24 Beam(s), 30mm Resolution

RS Stock No.: 511-7068Brand: SmartscanManufacturers Part No.: 1K3-104
View all in Light Curtains

Technical Document

Specifications

Brand

Smartscan

Series

1K3

Beam Resolution

30mm

Component Type

Receiver, Sender

Safety Type

3

SIL IEC 61508

2

SIL (IEC 61508)

2

PL EN ISO 13849-1

d

PL (EN ISO 13849-1)

d

Number Of Beams

24

Protective Height

630mm

Minimum Scanning Distance

0.5m

Maximum Scanning Distance

5m

Maximum Response Time

40 ms

Length

41mm

Height

640mm

Supply Voltage

24 V dc

Features

EDM

Dimensions

28 x 41 x 640 mm

Width

28mm

Terminal Type

Cable

Application

Hand

Country of Origin

United Kingdom
