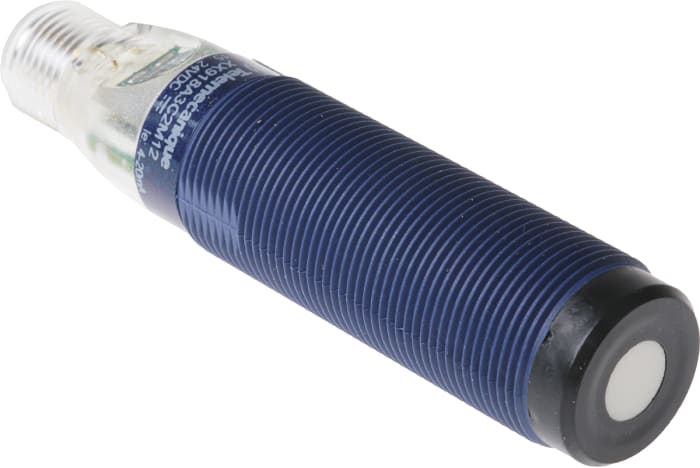

Telemecanique Sensors Ultrasonic Threaded Barrel Proximity Sensor, M18, 500 mm Detection 0-10 V, 12 → 24 V dc
Technical Document
Specifications
Thread Size
M18
Sensor Technology
Ultrasonic
Detection Range
500 mm
Body Style
Threaded Barrel
Analogue Switching Output Type
0-10 V
Connection Type
M12
Supply Voltage
12 → 24 V dc
Length
77.6mm
IP Rating
IP67
Housing Material
Plastic
Maximum dc Voltage
24V
Minimum Operating Temperature
-20°C
Short Circuit Overload Protection
Yes
Maximum Operating Temperature
+65°C
Reverse Polarity Protection
Yes
Switching Current
40 mA
Product details
Cylindrical Ultrasonic 0-10V - 0.5m Sn
IP67 rated
Analogue 0 to 10V output
M18 cylindrical body
Operating distance: 0.5m adjustable using using teach mode
Overall beam angle: 6°
Operating temperature: -20 to 65°C
LED indication
Electrical connection: male connector M12 4 pins
OsiSense
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
BD 191.037
BD 191.037 Each (Exc. Vat)
BD 210.141
BD 210.141 Each (inc. VAT)
1
BD 191.037
BD 191.037 Each (Exc. Vat)
BD 210.141
BD 210.141 Each (inc. VAT)
Stock information temporarily unavailable.
1
Stock information temporarily unavailable.
