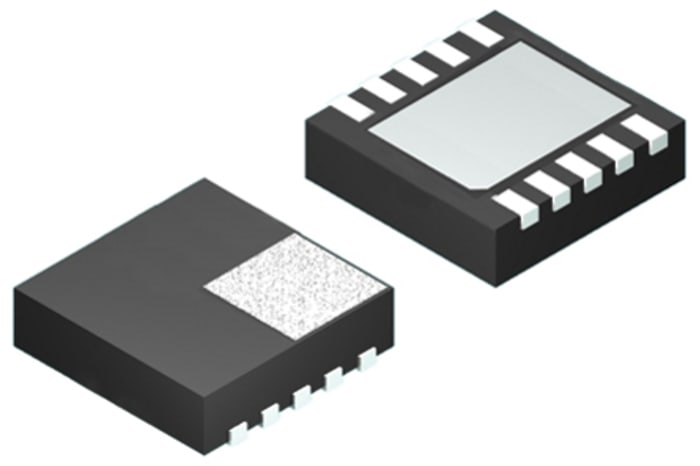

Texas Instruments DC/DC Converter, Surface Mount, 6V Output Voltage, 500 mA Output Current, 1 Outputs
Technical Document
Specifications
Brand
Texas InstrumentsProduct Type
DC/DC Converter
Output Voltage 1
6V
Output Current
500mA
Mount Type
Surface Mount
Number of Outputs
1
Maximum Operating Temperature
85°C
Minimum Operating Temperature
-40°C
Output Voltage 2
6V
Number of Pins
10
Series
TPS62175
Package Type
WSON
Line Regulation
0.015 %/V
Length
3.1mm
Depth
0.8mm
Standards/Approvals
JEDEC, REACH, ANSI, ESDA, RoHS
Width
2.1mm
Maximum Input Voltage
28V
Minimum Input Voltage
4.75V
Load Regulation
0.02 %/A
Product details
Step-Down DC/DC Converters (Integrated Switch) 9V to 30V Input Max., Texas Instruments
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
BD 8.208
BD 0.821 Each (In a Pack of 10) (Exc. Vat)
BD 9.029
BD 0.903 Each (In a Pack of 10) (inc. VAT)
Standard
10
BD 8.208
BD 0.821 Each (In a Pack of 10) (Exc. Vat)
BD 9.029
BD 0.903 Each (In a Pack of 10) (inc. VAT)
Stock information temporarily unavailable.
Standard
10
| Quantity | Unit price | Per Pack |
|---|---|---|
| 10 - 40 | BD 0.821 | BD 8.208 |
| 50 - 90 | BD 0.775 | BD 7.745 |
| 100 - 240 | BD 0.699 | BD 6.994 |
| 250 - 490 | BD 0.630 | BD 6.300 |
| 500+ | BD 0.601 | BD 6.011 |
