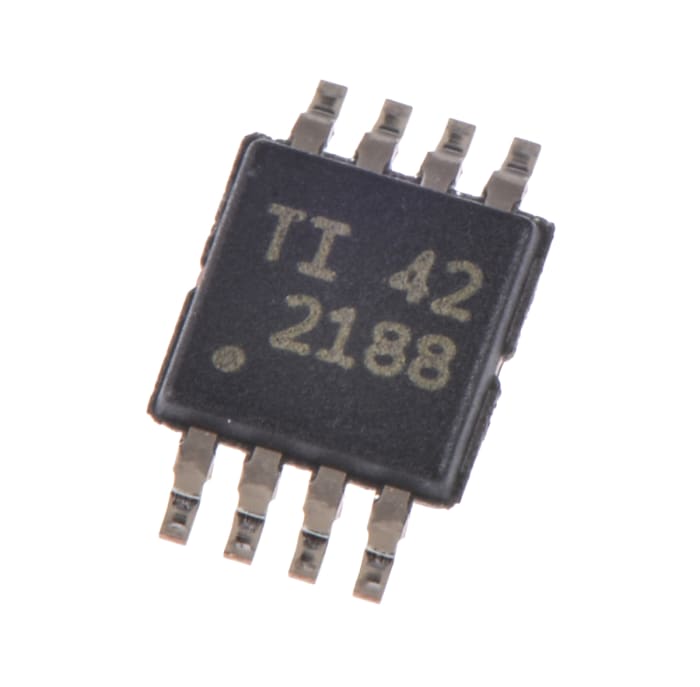

Texas Instruments, Voltage Level Translator Voltage Level Translator 1 Voltage Level, 8-Pin VSSOP

RS Stock No.: 218-4673Brand: Texas InstrumentsManufacturers Part No.: TXS0102DCUR
brand-logo
View all in Translator ICs

Technical Document

Specifications

Brand

Texas Instruments

Direction Type

Bi-Directional

Logic Family

CMOS

Product Type

Voltage Level Translator

Maximum Propagation Delay Time @ CL

7.5ns

Mount Type

Surface

Package Type

VSSOP

Number of Elements per Chip

1

Output Type

Open Drain

Pin Count

8

Logic Function

Voltage Level Translator

Maximum Low Level Output Current

1μA

Minimum Supply Voltage

1.65V

Maximum High Level Output Current

2μA

Translation

Voltage Level

Maximum Supply Voltage

5.5V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

No

Series

TXS0102

Width

2.1 mm

Height

0.9mm

Length

3.2mm

Automotive Standard

No
